Color matrix filter: applies mapping Ax + B at each pixel of a given image in RGBA space. More...

#include <color_matrix.h>

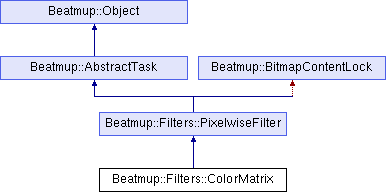

Inheritance diagram for Beatmup::Filters::ColorMatrix:

Public Member Functions
	ColorMatrix ()

bool	isIntegerApproximationsAllowed () const

void	allowIntegerApproximations (bool allow)

Color::Matrix &	getMatrix ()

void	setCoefficients (int outChannel, float bias, float r=.0f, float g=.0f, float b=.0f, float a=.0f)
	Sets color matrix coefficients for a specific output color channel. More...

void	setHSVCorrection (float hueShiftDegrees, float saturationFactor=1.0f, float valueFactor=1.0f)
	Resets the current transformation to a matrix performing standard HSV correction. More...

void	setColorInversion (color3f preservedHue, float saturationFactor=1.0f, float valueFactor=1.0f)
	Resets the current transformation to a fancy color inversion mode with a fixed hue point. More...

void	applyContrast (float factor)
	Applies a contrast adjustment by a given factor on top of the current transformation. More...

void	setBrightness (float brightness)
	Sets a brightness adjustment by a given factor (non-cumulative with respect to the current transformation) More...

Public Member Functions inherited from Beatmup::Filters::PixelwiseFilter
virtual	~PixelwiseFilter ()

virtual void	setInput (AbstractBitmap *input)

virtual void	setOutput (AbstractBitmap *output)

AbstractBitmap *	getInput ()

AbstractBitmap *	getOutput ()

ThreadIndex	getMaxThreads () const
	Gives the upper limint on the number of threads the task may be performed by. More...

Public Member Functions inherited from Beatmup::Object
virtual	~Object ()

Protected Member Functions
void	apply (int x, int y, msize nPix, TaskThread &thread)
	Applies filtering to given pixel data. More...

std::string	getGlslDeclarations () const
	Provides GLSL declarations used in the GLSL code. More...

std::string	getGlslSourceCode () const
	Provides GLSL source code of the filter. More...

void	setup (bool useGpu)
	A callback run every time before the filter is applied to the image. More...

Protected Member Functions inherited from Beatmup::Filters::PixelwiseFilter
virtual bool	process (TaskThread &thread) final
	Executes the task on CPU within a given thread. More...

virtual bool	processOnGPU (GraphicPipeline &gpu, TaskThread &thread) final
	Executes the task on GPU. More...

virtual void	beforeProcessing (ThreadIndex threadCount, ProcessingTarget target, GraphicPipeline *gpu)
	Instruction called before the task is executed. More...

virtual void	afterProcessing (ThreadIndex threadCount, GraphicPipeline *gpu, bool aborted)
	Instruction called after the task is executed. More...

virtual TaskDeviceRequirement	getUsedDevices () const final
	Communicates devices (CPU and/or GPU) the task is run on. More...

	PixelwiseFilter ()

Private Attributes
Color::Matrix	matrix
	the matrix More...

color4f	bias
	added constant More...

bool	allowIntApprox
	allow integer approximation of the coefficients More...

Additional Inherited Members
Public Types inherited from Beatmup::AbstractTask
enum class	TaskDeviceRequirement { CPU_ONLY , GPU_OR_CPU , GPU_ONLY }
	Specifies which device (CPU and/or GPU) is used to run the task. More...

Static Public Member Functions inherited from Beatmup::AbstractTask
static ThreadIndex	validThreadCount (int number)
	Valid thread count from a given integer value. More...

Protected Attributes inherited from Beatmup::Filters::PixelwiseFilter
AbstractBitmap *	inputBitmap

AbstractBitmap *	outputBitmap

ImageShader *	shader

Static Protected Attributes inherited from Beatmup::Filters::PixelwiseFilter
static const std::string	GLSL_RGBA_INPUT

Detailed Description

Color matrix filter: applies mapping Ax + B at each pixel of a given image in RGBA space.

Definition at line 30 of file color_matrix.h.

Constructor & Destructor Documentation

◆ ColorMatrix()

Filters::ColorMatrix::ColorMatrix ( )

Definition at line 27 of file color_matrix.cpp.

                                 :
     allowIntApprox(true), bias(Color::ZERO_F)
 {}

Member Function Documentation

◆ apply()

void Filters::ColorMatrix::apply	(	int	x,
		int	y,
		msize	nPix,
		TaskThread &	thread
	)

protectedvirtual

Applies filtering to given pixel data.

Parameters

x	Horizontal position of the first pixel in image
y	Vertical position of the first pixel in image
nPix	Number of pixels to process
thread	Calling thread descriptor

Implements Beatmup::Filters::PixelwiseFilter.

Definition at line 74 of file color_matrix.cpp.

                                                                            {
     BitmapProcessing::pipeline<Kernels::ApplyColorMatrix>(
         *inputBitmap, *outputBitmap, x, y,
         bias, matrix, allowIntApprox && inputBitmap->isInteger() && outputBitmap->isInteger(),
         nPix
     );
 }

◆ getGlslDeclarations()

std::string Filters::ColorMatrix::getGlslDeclarations ( ) const

protectedvirtual

Provides GLSL declarations used in the GLSL code.

Reimplemented from Beatmup::Filters::PixelwiseFilter.

Definition at line 83 of file color_matrix.cpp.

                                                         {
     if (allowIntApprox)
         return
             "uniform lowp mat4 transform;" \
             "uniform lowp vec4 bias;";
     else
         return
             "uniform highp mat4 transform;" \
             "uniform highp vec4 bias;";
 }

◆ getGlslSourceCode()

std::string Filters::ColorMatrix::getGlslSourceCode ( ) const

protectedvirtual

Provides GLSL source code of the filter.

Implements Beatmup::Filters::PixelwiseFilter.

Definition at line 95 of file color_matrix.cpp.

                                                       {
     return "gl_FragColor = " + PixelwiseFilter::GLSL_RGBA_INPUT + " * transform + bias;";
 }

◆ setup()

void Filters::ColorMatrix::setup ( bool useGpu )

protectedvirtual

A callback run every time before the filter is applied to the image.

Parameters

useGpu If true, the filter will be run on GPU.

Reimplemented from Beatmup::Filters::PixelwiseFilter.

Definition at line 100 of file color_matrix.cpp.

                                           {
     if (useGpu) {
         shader->setFloatMatrix4("transform", matrix);
         shader->setFloat("bias", bias.r, bias.g, bias.b, bias.a);
     }
 }

◆ isIntegerApproximationsAllowed()

bool Beatmup::Filters::ColorMatrix::isIntegerApproximationsAllowed ( ) const

inline

Definition at line 46 of file color_matrix.h.

46 { return allowIntApprox; }

◆ allowIntegerApproximations()

void Filters::ColorMatrix::allowIntegerApproximations ( bool allow )

Definition at line 108 of file color_matrix.cpp.

                                                               {
     allowIntApprox = allow;
 }

◆ getMatrix()

Color::Matrix& Beatmup::Filters::ColorMatrix::getMatrix ( )

inline

Definition at line 50 of file color_matrix.h.

50 { return matrix; }

◆ setCoefficients()

void Filters::ColorMatrix::setCoefficients	(	int	outChannel,
		float	bias,
		float	r = `.0f`,
		float	g = `.0f`,
		float	b = `.0f`,
		float	a = `.0f`
	)

Sets color matrix coefficients for a specific output color channel.

Parameters

outChannel	matrix line number (output channel)
bias	constant to add to the output channel
r	red channel coefficient
g	green channel coefficient
b	blue channel coefficient
a	alpha channel coefficient

Definition at line 113 of file color_matrix.cpp.

                                                                                                        {
     OutOfRange::check(outChannel, 0, 3, "Invalid output channel index: %d");
     pixfloat4 _(this->bias);
     _[outChannel] = bias;
     this->bias = _;
     matrix[outChannel].r = r;
     matrix[outChannel].g = g;
     matrix[outChannel].b = b;
     matrix[outChannel].a = a;
 }

◆ setHSVCorrection()

void Filters::ColorMatrix::setHSVCorrection	(	float	hueShiftDegrees,
		float	saturationFactor = `1.0f`,
		float	valueFactor = `1.0f`
	)

Resets the current transformation to a matrix performing standard HSV correction.

Parameters

hueShiftDegrees	Hue shift in degrees
saturationFactor	Saturation scaling factor
valueFactor	Value scaling factor

Definition at line 125 of file color_matrix.cpp.

                                                                                                      {
     matrix = Color::Matrix(hueDegrees, saturationFactor, valueFactor);
     bias = Color::ZERO_F;
 }

◆ setColorInversion()

void Filters::ColorMatrix::setColorInversion	(	color3f	preservedHue,
		float	saturationFactor = `1.0f`,
		float	valueFactor = `1.0f`
	)

Resets the current transformation to a fancy color inversion mode with a fixed hue point.

Parameters

preservedHue	Hue value to keep constant. The other colors are inverted
saturationFactor	Saturation scaling factor (in HSV sense)
valueFactor	Value scaling factor (in HSV sense)

Definition at line 131 of file color_matrix.cpp.

                                                                                                           {
     matrix = Color::Matrix(preservedHue, saturationFactor, valueFactor);
     bias = Color::ZERO_F;
 }

◆ applyContrast()

void Filters::ColorMatrix::applyContrast ( float factor )

Applies a contrast adjustment by a given factor on top of the current transformation.

Definition at line 137 of file color_matrix.cpp.

                                                    {
     matrix.r().r *= factor;
     matrix.r().g *= factor;
     matrix.r().b *= factor;
     matrix.g().r *= factor;
     matrix.g().g *= factor;
     matrix.g().b *= factor;
     matrix.b().r *= factor;
     matrix.b().g *= factor;
     matrix.b().b *= factor;
 }

◆ setBrightness()

void Filters::ColorMatrix::setBrightness ( float brightness )

Sets a brightness adjustment by a given factor (non-cumulative with respect to the current transformation)

Definition at line 150 of file color_matrix.cpp.

                                                        {
     bias.r = brightness;
     bias.g = brightness;
     bias.b = brightness;
 }

Member Data Documentation

◆ matrix

Color::Matrix Beatmup::Filters::ColorMatrix::matrix

private

the matrix

Definition at line 32 of file color_matrix.h.

◆ bias

color4f Beatmup::Filters::ColorMatrix::bias

private

added constant

Definition at line 33 of file color_matrix.h.

◆ allowIntApprox

bool Beatmup::Filters::ColorMatrix::allowIntApprox

private

allow integer approximation of the coefficients

Definition at line 34 of file color_matrix.h.

The documentation for this class was generated from the following files:

core/filters/color_matrix.h
core/filters/color_matrix.cpp
